Film roll holder for 6 or 9 rolls

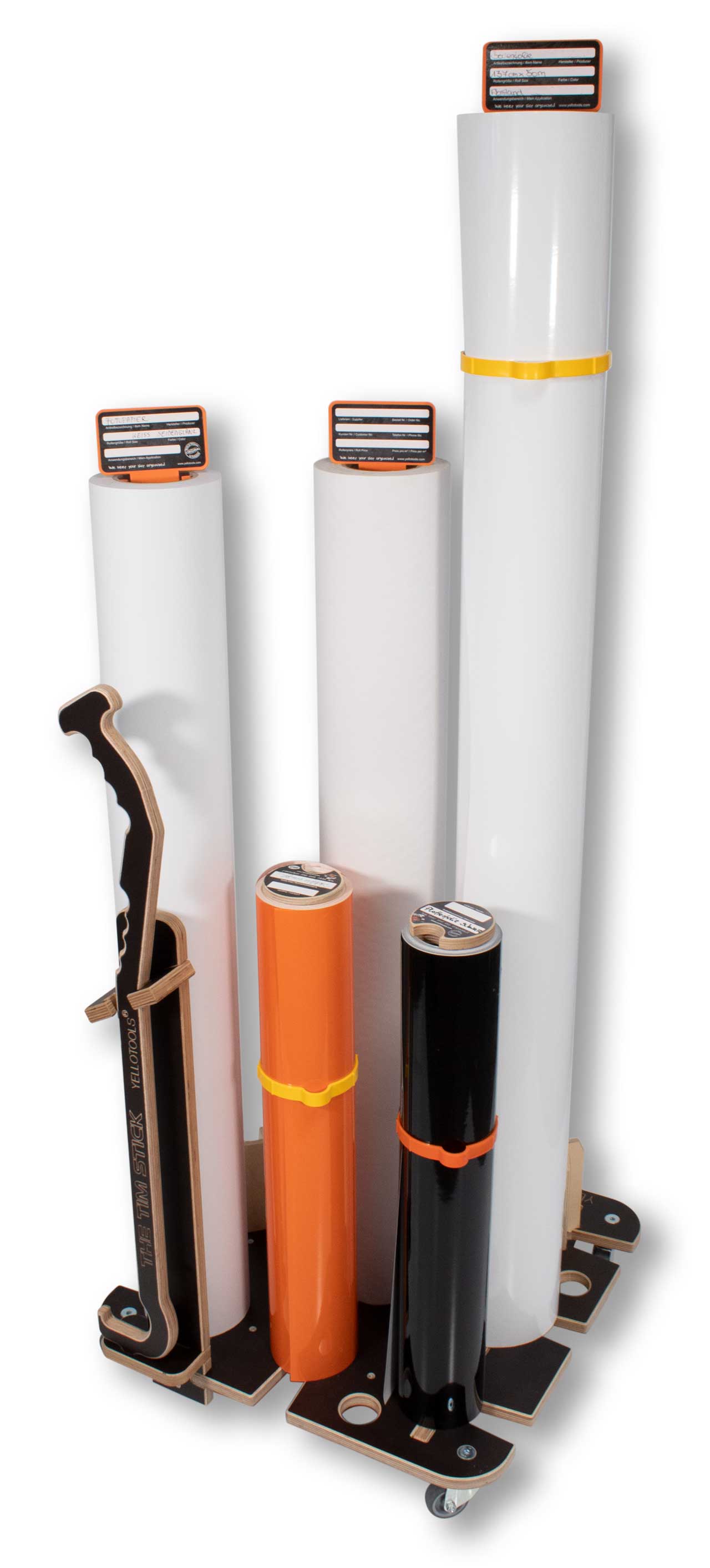

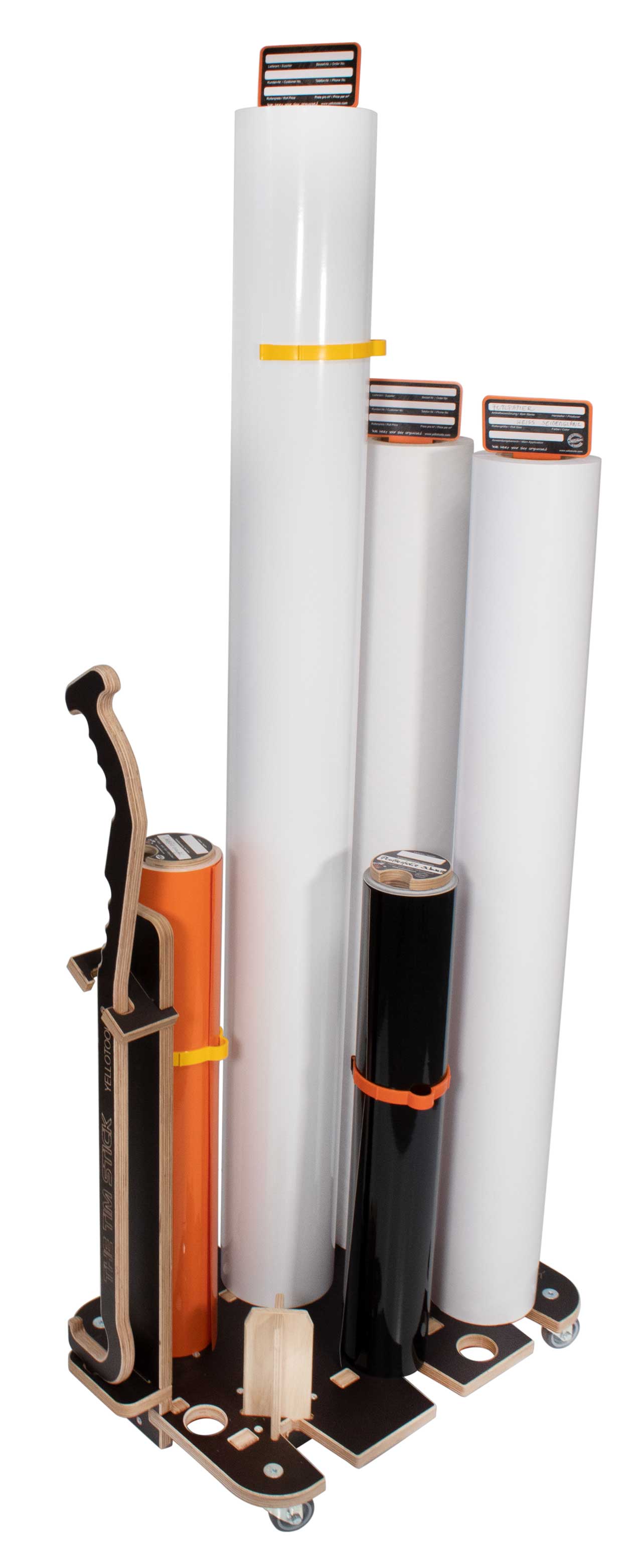

Twister Slot is the latest member of the Yellotools Twister family: With this mobile film roll holder, up to 9 rolls can be stored on only 3.23 ft² of space and pushed from the storage area to the printer, plotter, etc. and back as required.

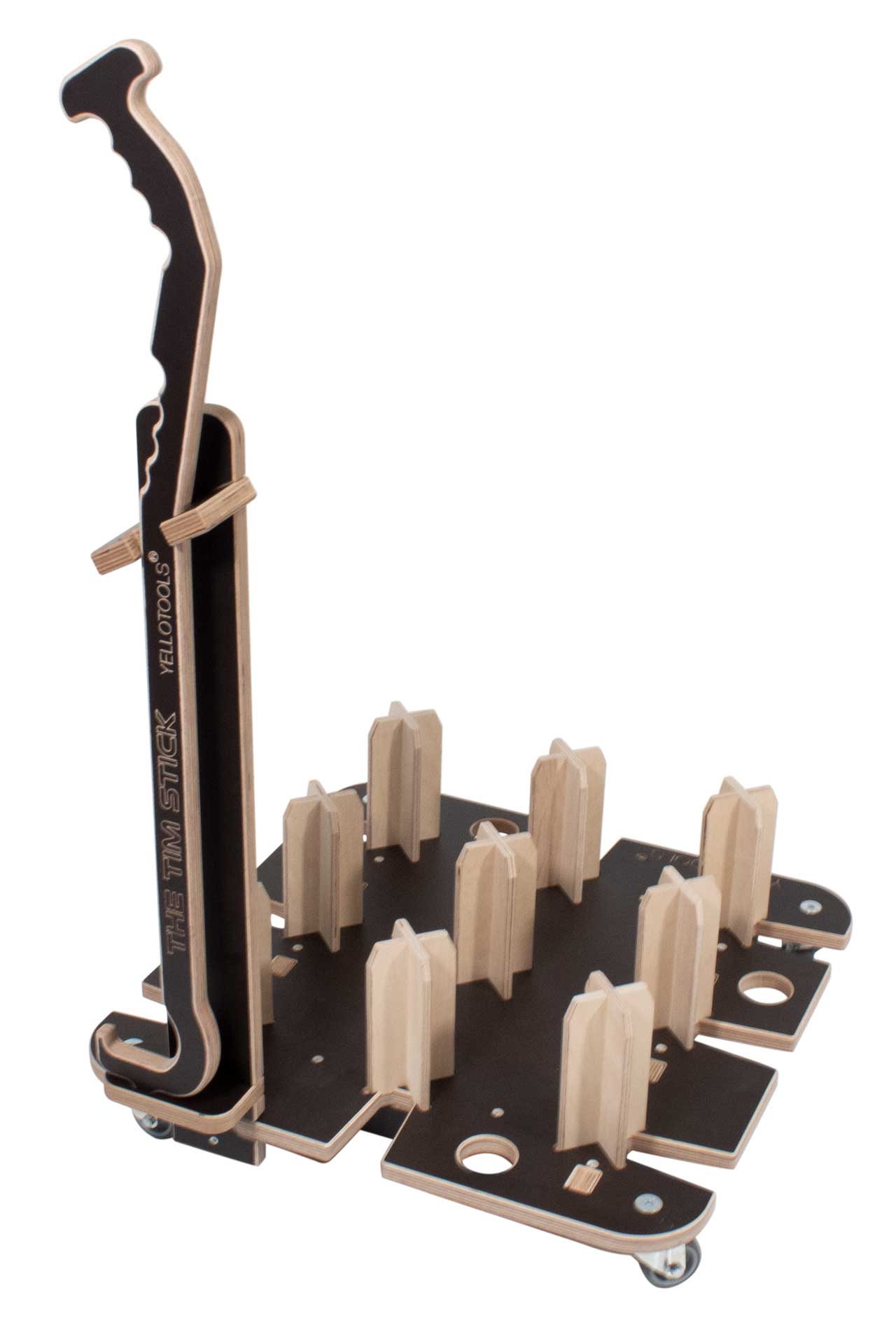

In addition, Twister Slot offers the possibility of lifting the heavy rolls by using the new TimStick, which is easy on the back, and then placing them back on the roll holder: The recesses in the base plate are dimensioned in such a way that the hook-shaped end of the TimStick can be inserted precisely into the roll core. A frame on the bottom of the Twister serves as a guide. The lifting aid is designed so that the lifted rolls can be placed horizontally on the cutting table, plotter or printer in a single motion.
The four milled holes of the base plate also allow the Twister Slot to be pulled around with the TimStick. The TimStick can then be placed within easy reach in the separately available TimStick Station.
Twister Slot is available in two versions, either for 6 or 9 rolls with a roll core diameter of 3" (7.62 cm).
Product features
- mobile film roll holder for 6 or 9 rolls
- sturdy wooden construction
- max. load capacity: up to 440 lbs
- freely rotatable castors
- material: multiplex wood, coated

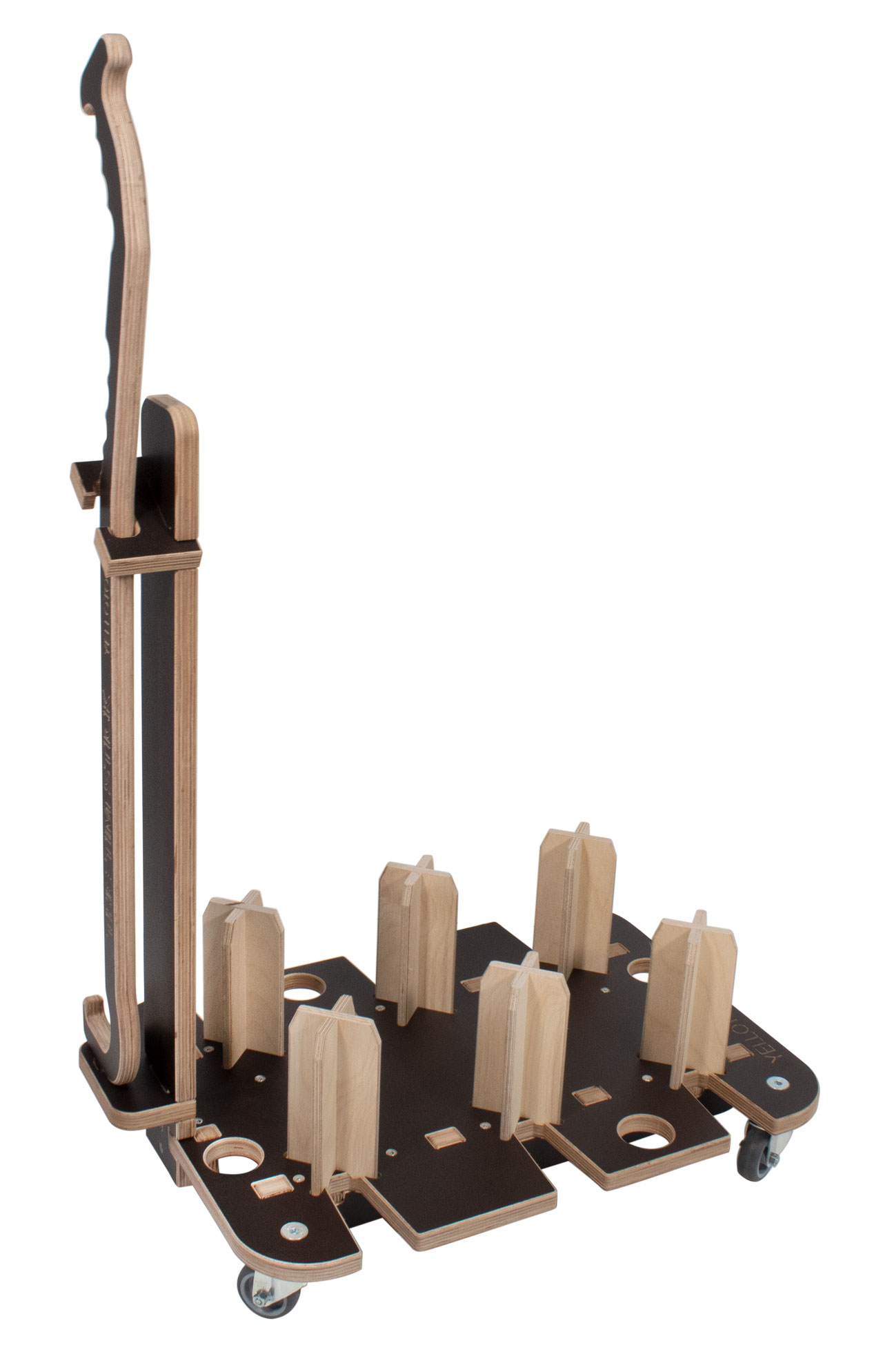

Twister Slot 6 data
- dimensions (W x H x L): 22" x 9" x 16"
- net weight: 9.7 lbs (4.4 kg)
- capacity: 6 rolls, max. diameter 6.7" (17 cm) per roll

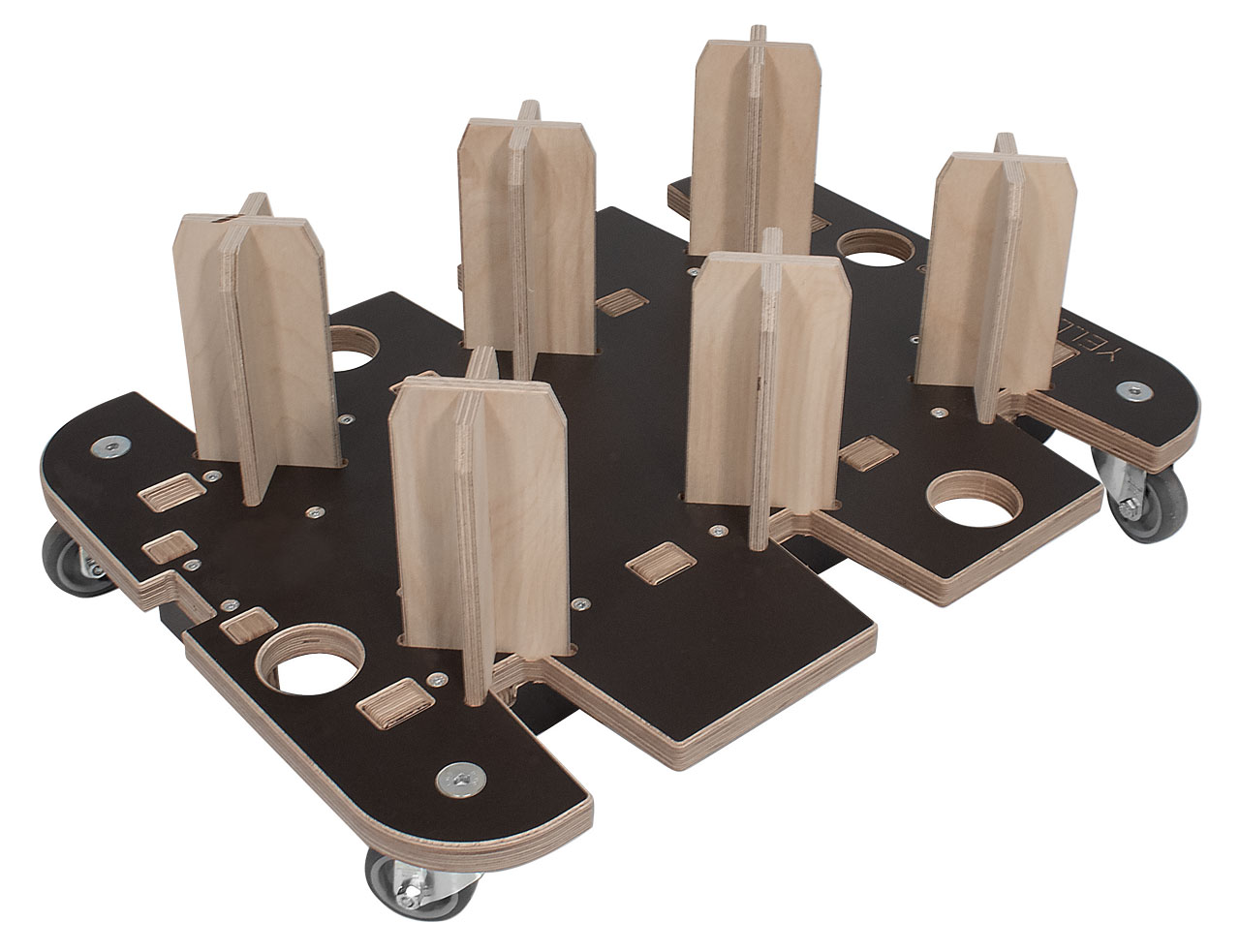

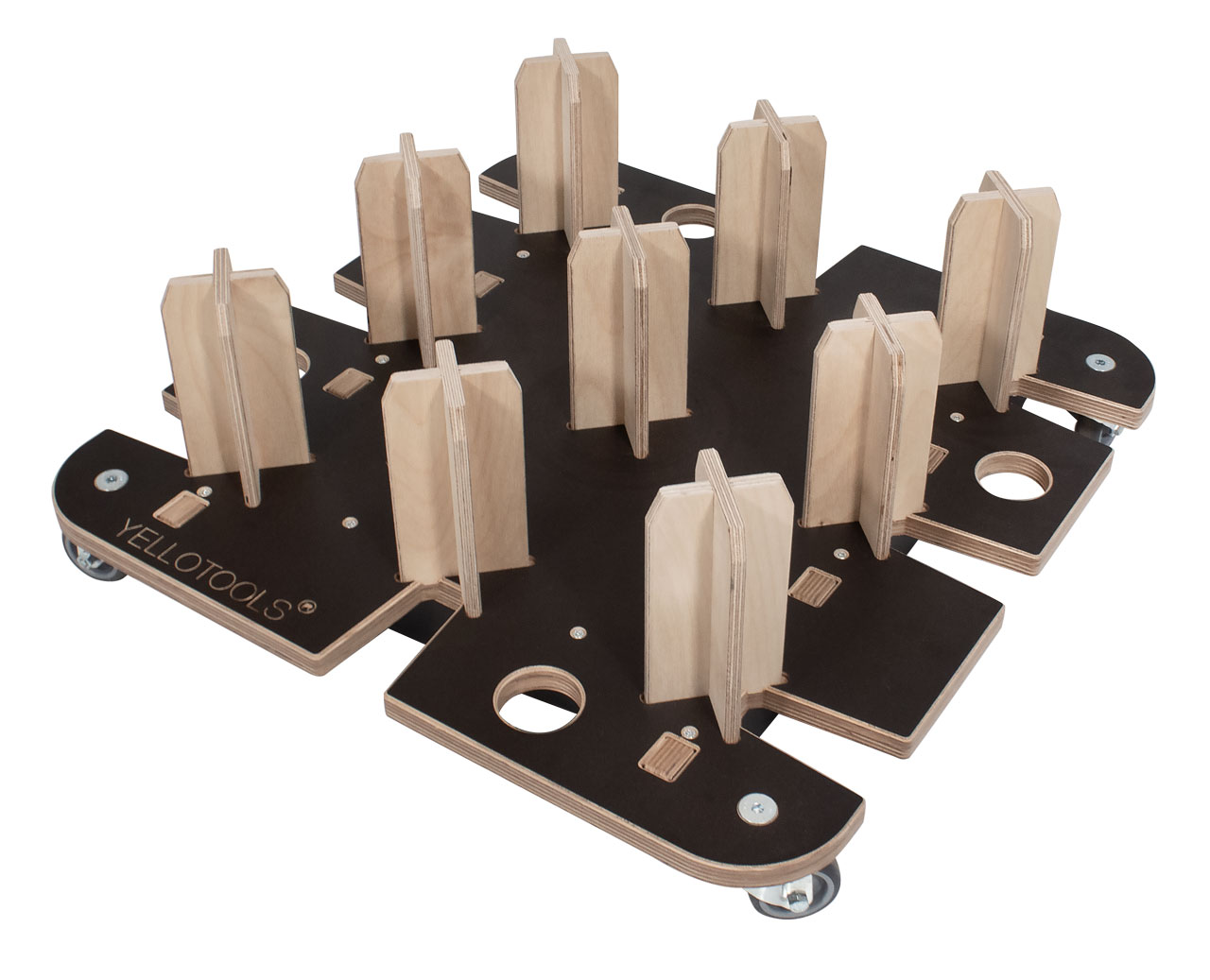

Twister Slot 9 data
- dimensions (W x H x L): 22" x 9" x 22"
- net weight: 12.9 lbs (5.85 kg)
- capacity: 9 rolls, max. diameter 6.7" (17 cm) per roll
NOTE: Due to the design of this Twister version, the center retaining cross cannot be reached with the TimStick.
For optimal film storage, we recommend our SpeedClips roll clamps, MediaCards labelling cards and MediaMeter measuring boards to determine the remaining metres of film material on the roll.
